Trend Micro Not Working? Fix High CPU, Stuck Scans and Update Loops Safely

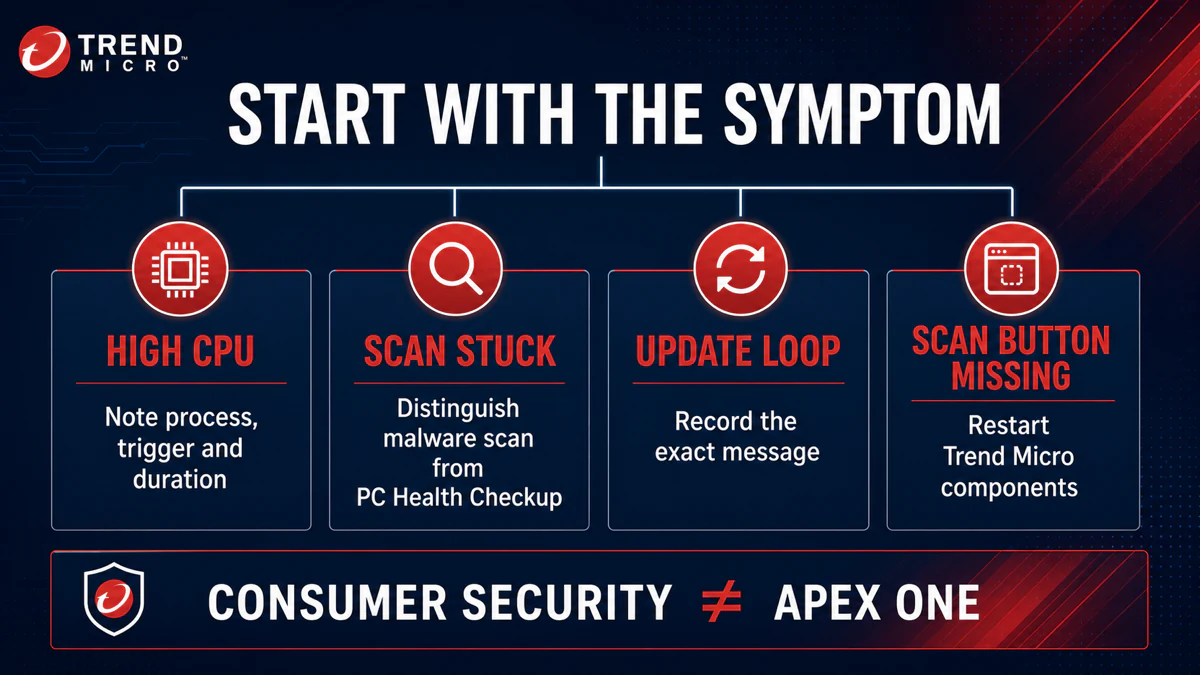

First, confirm which Trend Micro product you have

This guide covers the red consumer Trend Micro Security console on Windows: Antivirus+ Security, Internet Security, Maximum Security and related current household suites. It doesn't cover Apex One, Worry-Free, Deep Security or a company-managed endpoint agent. Those products have different processes, policies, administrators and support tools. Our Trend Micro product hub maps the current household range.

Open the console and account information before searching a process name. If an employer installed the agent or settings are locked, record the device, time and symptom and contact the organization's administrator. Don't borrow an Apex One service-kill command from Reddit for a family PC—or consumer `supporttool.exe` steps for a managed endpoint.

The distinction also changes what “not working” means. A consumer console that opens but can't scan needs a different path from a managed agent whose local controls were intentionally disabled by policy. Confirm the product name and owner before changing services, exclusions or network settings.

The first five minutes decide whether the evidence survives

Write down what failed in plain language: high CPU while idle, high CPU only during a Full Scan, scan stopped at one file, PC Health Checkup stopped at a percentage, update prompt returned after restart, or Scan button missing. Capture the time and a screenshot that includes the window title, but don't click a suspicious popup merely to learn more.

Open Task Manager only to observe. Note the process shown, approximate CPU and memory range, whether disk or network activity continues, and what action triggered it. A single instant at 80% is less useful than “rises after opening a 12 GB archive and falls within three minutes.” Don't end the process yet.

Check the installed version without assuming an old article is current

Trend Micro's current version page listed Windows version 17.8 at our August 3, 2026 check. Hover over the Trend Micro logo in the upper-left of the consumer console to see the installed version. Because releases change, compare against the live page instead of treating our number as permanent.

Right-click the Trend Micro tray icon and choose Check for Program Updates. Allow any Restart Required prompt, then restart Windows even if the update reports success. Component files can be current on disk while an older in-memory state remains active until reboot.

Finish Windows updates before repairing Trend Micro

A missing Windows prerequisite can stop installation, and pending Windows servicing can overlap with antivirus updates, disk use and reboots. Trend Micro's February 2026 installation notice explicitly points users to Windows Update when required Microsoft components are missing.

Install available Windows security and cumulative updates, restart until no completion step remains, then update Trend Micro again. Don't run two installers and a Full Scan while Windows is still servicing components; that creates noise in both performance and failure evidence.

High CPU during a scan isn't automatically a defect

A Quick, Full or Custom Scan must read files, unpack some content, compare reputation and perform local analysis. CPU and disk use can rise, especially on a first scan, a large archive, source tree or library of many small files. The meaningful question is whether work progresses and load falls when the task ends.

Watch the current object, file count and disk activity rather than one percentage. If the scan moves, the interface responds and CPU returns toward baseline afterward, schedule it outside active work. Our Trend Micro scan and exclusions guide covers scan types without using a broad exclusion as a performance shortcut.

Persistent idle CPU needs a reproducible trigger

Close user applications, let startup settle and observe for several minutes. Record whether the load begins after browser launch, cloud synchronization, extracting an archive, connecting an external drive or waking from sleep. Repeat once after a clean Windows restart and completed updates. Mute Mode can reduce interruptions, but it doesn't repair an idle CPU loop.

If consumer Trend Micro remains consistently busy with no visible scan or update, don't guess which child process is safe to kill. Start Diagnostic Toolkit logging, reproduce the idle condition and finish collection. The log connects process activity with the product state in a way a Task Manager screenshot can't. The Windows and ARM compatibility guide is the better next check when the symptom began after a device or architecture change.

A loud fan is a clue, not a CPU diagnosis

Fan speed can rise because of CPU, GPU, battery charging, ambient heat or a blocked vent. Open Task Manager and Windows power information before blaming Trend Micro. Note total CPU and which process leads, and check whether another updater, browser tab or game owns the load.

Don't compare percentages across different core counts as if they were the same workload. A short 100% burst on one low-power system and sustained 25% across a many-core desktop are different. Duration, trigger, temperature and recovery matter more than the loudest moment.

A second real-time antivirus can create duplicate work

Two third-party real-time suites may inspect the same file operations, compete for browser/network hooks and complicate Windows Security provider state. Inventory installed security products, old trial remnants, VPN filters and enterprise agents before tuning exclusions. Keep the operating system's built-in security services in their supported state.

Uninstall the obsolete third-party suite with its official remover where required, restart and retest. Don't exclude one antivirus's folders inside the other as a permanent coexistence plan. A company-managed endpoint is different: only its administrator should change the security stack.

One archive or developer tree can make progress look frozen

A compressed archive may contain thousands of nested objects while the top-level filename appears unchanged. Dependency folders, virtual machines and mail stores can also create intense small-file work. Note the exact object and whether disk reads continue before labeling the scan stuck.

Run a smaller Custom Scan that excludes nothing permanently but narrows the reproduction. If one non-private file reliably triggers the stall, record its source, size and hash and ask support how to submit it. Never upload a confidential archive to a public scanner without authorization.

Distinguish Malware Scan from PC Health Checkup

Quick, Full and Custom Scan look for security threats. PC Health Checkup evaluates optimization and configuration items. The two workflows can stop at a percentage for different reasons, and a PC Health Checkup support article doesn't prove the malware engine has stalled.

Record the exact heading and error text. If the screen says “Unable to contact Trend Micro for more information needed to optimize the computer,” follow the PC Health path below. If a malware scan stalls on an object, update, restart and reproduce with a smaller scan and logs.

A brief Quick Scan result delay is documented

Trend Micro's current Windows known-issues page says version 17.8 can show an approximately 10-second delay before Quick Scan results appear. Waiting through that brief result transition is reasonable.

A UI that remains unresponsive, a scan that repeatedly stalls at the same object or a process that continues indefinitely after cancellation is a different symptom. Capture the time and object instead of extending a documented ten-second note into “all long delays are normal.”

If PC Health Checkup stops, update its components first

Trend Micro's PC Health Checkup repair page attributes its named contact/optimization error to outdated components. Close other programs, restart Windows and retry after current product updates.

If it persists, use Diagnostic Toolkit to Stop all components, wait 10–30 seconds and Start all components, then retry. The vendor page also suggests clearing the user's `%temp%` files later in that specific path. Don't generalize that cleanup to deleting Trend Micro archives or diagnostic logs.

“Access denied” is a result state, not a frozen scan

Trend Micro's scan response guide distinguishes Restart required and Access denied from successfully Cleaned or Removed threats. A network drive, read-only media or location without write permission may prevent cleaning even though detection completed.

Open the result details and preserve the path. Don't take ownership of system folders or weaken permissions broadly to force one action. Disconnect removable media safely, obtain the needed administrator or share permission, or ask support for a targeted next step.

For an update loop, record the exact repeated prompt

“Important update available,” “Restart required,” a progress bar that returns to zero and an installer prerequisite error are different problems. Capture the full wording and time, hover for the current version, check Windows date/time and network state, then restart and run Check for Program Updates from the tray icon.

If the version changes and the prompt stops, the loop was an incomplete restart. If the same message returns on the same version, preserve the screenshot and proceed to the targeted component/temp-file repair. Avoid downloading random pattern files or installers from mirrors.

Corrupted temporary update files have a documented repair

Trend Micro's older but still published repeating update prompt guide uses `supporttool.exe`: Stop all components, wait 10–30 seconds, use Delete Now under Temporary Files, Start all components and retry the manual update.

Use that narrow sequence only after current Windows/product updates and a reboot fail. It deletes Trend Micro update temporary files, not every Windows temporary folder and not debug archives. Protection is stopped briefly, so disconnect from risky activity and restart components immediately.

Activation and update failures can be network problems

An installer stuck at Now Activating may be unable to reach the license server. Trend Micro's activation article suggests flushing DNS with `ipconfig /flushdns` before retrying. First confirm ordinary HTTPS access, automatic date/time and whether a VPN, proxy or filtered network owns the path.

Don't disable the router firewall or install an unknown certificate. Try a known-good network when practical and record whether the account portal loads. A valid license that can't reach activation is different from an expired or retailer-restricted entitlement; our activation guide covers account ownership.

A missing Scan button usually means incomplete component startup

Trend Micro's December 2025 missing-button guide says the installation may be incomplete or components didn't start correctly at boot. This isn't evidence that Trend Micro intentionally removed scanning from the Windows product.

Press Windows+R, enter `supporttool.exe`, approve the official Diagnostic Toolkit, open the C Uninstall tab, choose 5. Stop all components, wait 10–30 seconds for the tray icon to disappear, then choose 4. Start all components. Reopen Trend Micro and check the button.

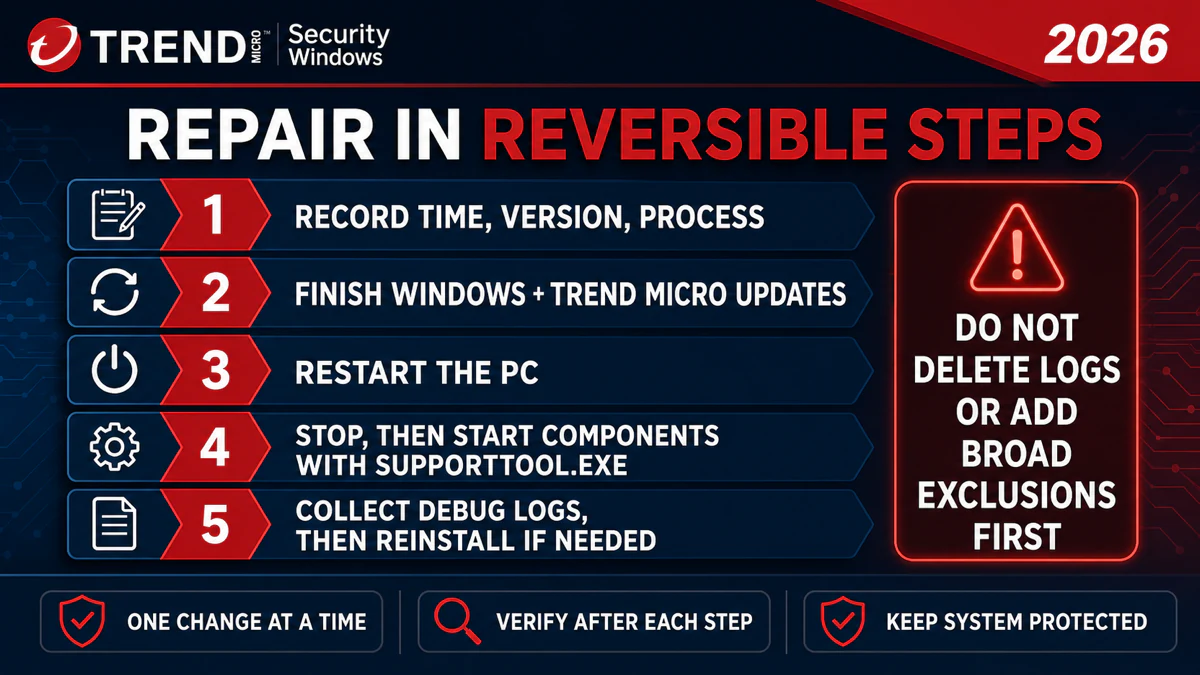

Repair in reversible steps

Record evidence, finish Windows and Trend Micro updates, restart the PC, reproduce once, then restart components through the documented Toolkit. Verify after every step. If the failure persists, collect debug logs while reproducing it and only then prepare a controlled reinstall.

This order preserves causality. Five changes at once may appear to fix the problem while leaving the real trigger unknown. Broad exclusions, service deletion and registry cleaners aren't early troubleshooting; they create new security and support variables.

What the Diagnostic Toolkit component restart does

Stop all components temporarily turns off the consumer Trend Micro components. Wait until the tray icon disappears, then Start all components and confirm the console returns. Don't browse, open email attachments or continue a risky download during the unprotected interval.

The C Uninstall tab name is confusing because it also contains component controls. Choose the numbered Stop and Start actions documented for the symptom, not Uninstall Software, unless you have reached the reinstall step. Record what you clicked so support can reconstruct the state.

Collect logs while the failure is happening

Trend Micro's debug-log guide opens `supporttool.exe`, then uses Start Collecting Data. Reproduce the high CPU, scan stall, missing UI or update prompt, note the exact time, and choose Finish Collecting Data.

The documented default archive folder is `C:\Program Files\Trend Micro\Titanium\Archive`. Preserve the generated archive and send it only through an official Trend Micro support case. Diagnostic files can reveal system paths, versions and running components; don't post the archive publicly.

Pair every log with a short incident note

Write the local time and timezone, Windows build, Trend Micro version, symptom, trigger, duration and changes already tried. If CPU is involved, include a screenshot of Task Manager sorted by CPU and state whether a scan/update was active. Redact unrelated usernames or document titles where practical.

A log without a reproduction time forces support to search a wide window. A screenshot without logs can't show internal component events. The pair gives the best chance of distinguishing a product loop, damaged update, file-specific scan or unrelated Windows workload.

Reinstall only after preserving the state

If updates, reboot and component restart don't restore normal behavior, record the subscription owner, activation route and current device assignment. Finish log collection, then use the consumer uninstall path and download a fresh installer from the official Trend Micro account. Follow our clean installation and first-run guide rather than reusing an unknown old installer.

Don't use an old setup file from Downloads or a third-party mirror. Check the subscription and renewal route in our Trend Micro plans and pricing guide before removing a working activation, especially when the license came from a retailer. Reinstalling is a repair step, not proof that the original cause was corruption.

A crash or BSOD is an escalation, not a tuning problem

Save the exact stop code, dump time and Windows reliability event. Trend Micro's consumer guidance notes older product versions can contribute to crashes and directs users to upgrade, but a BSOD can also involve storage, memory, drivers or another filter product.

Don't keep reproducing a crash with unsaved work. Update Windows, drivers and Trend Micro, collect the available dump and product logs, and contact support. If Windows can't boot normally, use recovery guidance appropriate to the operating system rather than deleting antivirus drivers by hand.

Don't turn a performance fix into a security gap

Excluding C:\, Downloads, the entire game library or every developer folder makes results look faster by skipping the content the scanner was asked to inspect. Permanent protection disablement and scheduled process killing create the same false success. Whole-drive exclusions aren't a diagnostic result.

If one trusted file or tool repeatedly triggers excessive work, reproduce it, verify publisher and hash, update both products and use the narrowest evidence-supported exception only after review. Document the exception and retest after updates. Our exclusions guide explains the same least-scope rule.

A temporary controlled test isn't permission to leave protection weakened. Restore the original setting immediately after the comparison, note whether the symptom changed and prefer a file-specific or workflow-specific remedy supported by evidence. If the symptom doesn't change, the excluded content wasn't the cause.

Community reports tell us what to reproduce, not how common it's

Recent discussions include high CPU on enterprise Apex One systems, consumer upgrade failures and repeated popups. The enterprise reports aren't direct evidence about the consumer engine, while individual consumer posts don't reveal prevalence across the installed base.

We use those reports to add process-boundary, log and rollback advice. We don't copy named-user claims into a performance rate, invent support quotes or recommend enterprise utilities to household users. Official documentation controls the repair steps.

Escalation checklist for a useful support case

Include the product name, installed version, Windows build, exact local time and timezone, screenshot, symptom and trigger, whether Windows/product updates and reboot completed, and the debug archive. State whether the PC is personal or organization-managed.

List each change in order and whether the symptom changed. Don't send an activation key, account password or unrelated personal files. A concise reproducible case is safer and usually faster than remote access offered by an unsolicited “support” account.

Keep the case focused on one reproducible failure. If high CPU, a missing button and an activation error began at different times, label them separately instead of assuming one root cause. That small timeline helps support choose the right logs and prevents a successful fix for one symptom from hiding another.
